SMC

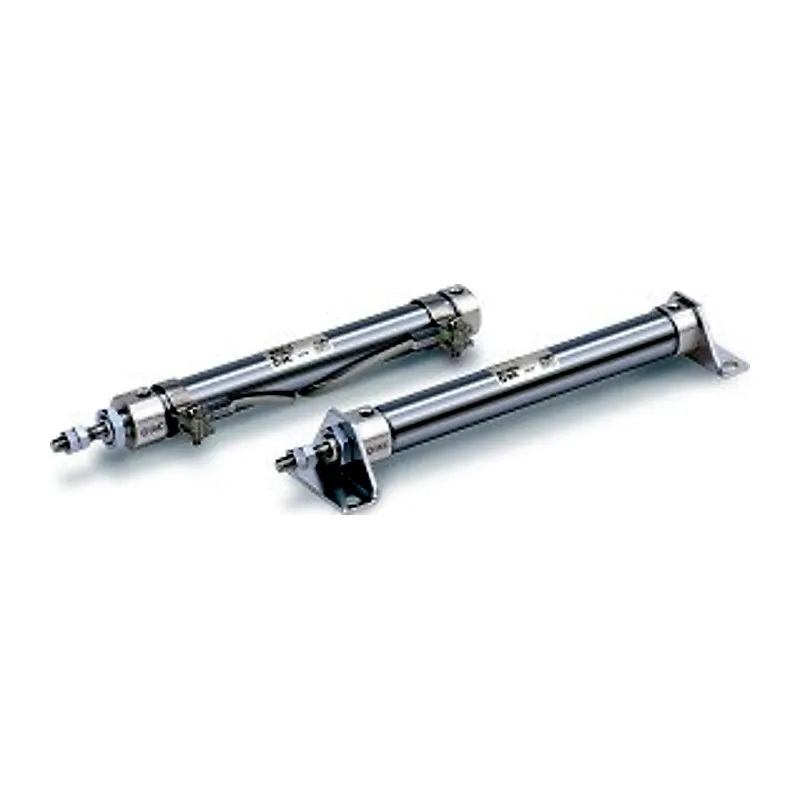

SMC CJ2 mini cylinder — CJ2B16-50Z
Stainless-body pin cylinder for light pushing and stopping jobs. 16 mm bore, 50 mm stroke, basic mounting, rubber bumpers.
Specifications
| Part number | CJ2B16-50Z |
|---|---|
| Series | CJ2 (Z) |
| Bore | 16 mm |
| Stroke | 50 mm |
| Pressure | 0.06–0.7 MPa |
| Proof pressure | 1.0 MPa |
| Port | M5×0.8 |
| Piston speed | 50–750 mm/s |
Specifications show the typical range for this product. Confirm the exact model with us before ordering.
