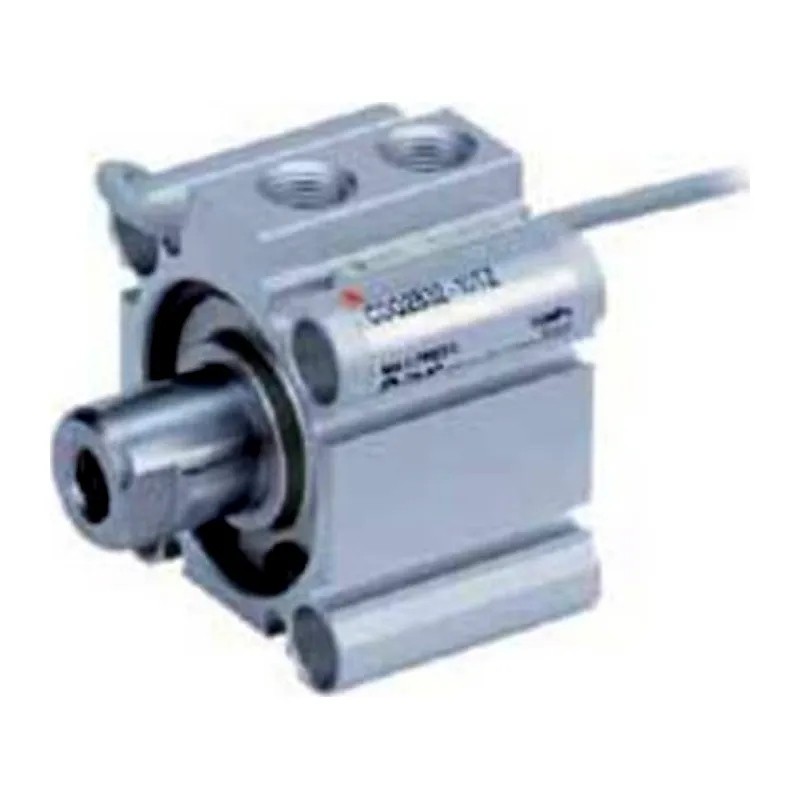

SMC CQ2 compact cylinder — CDQ2B32-50DZ

Short-body double-acting cylinder for tight machine spaces, with a built-in magnet so position switches clip into the body grooves. Code reads: D = magnet, B = through-hole mount, 32 = bore, 50 = stroke, Z = switch grooves.

Specifications

Part number	CDQ2B32-50DZ
Series	CQ2 / CDQ2 (Z)
Bore	12–100 mm
Standard stroke	5–100 mm
Pressure	0.05–1.0 MPa
Action	Double-acting, single rod
Port (ø32)	Rc 1/8
Magnet	Built-in (CDQ2)

Specifications show the typical range for this product. Confirm the exact model with us before ordering.
