SMC

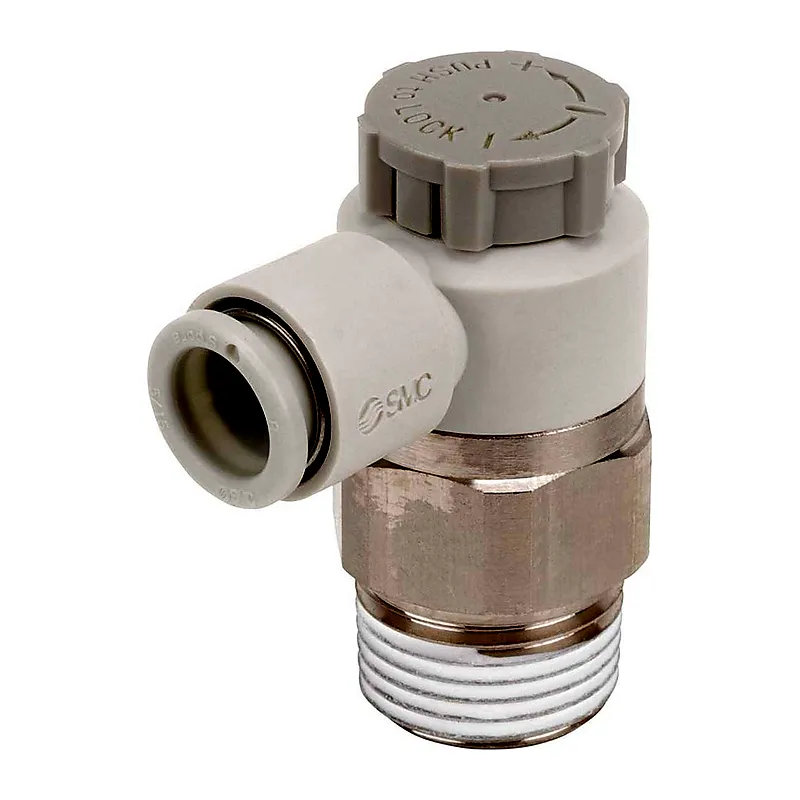

SMC AS speed controller (elbow) — AS2201F-01-08S
Elbow-type flow control with built-in one-touch fitting, screwed straight into a cylinder port for meter-out speed control. 01 = R1/8 thread, 08 = ø8 mm tube, S = sealant.
Specifications
| Part number | AS2201F-01-08S |
|---|---|
| Series | AS (one-touch) |
| Control | Meter-out |
| Thread | R1/8 |
| Tube OD | 8 mm |
| Pressure | 0.1–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | −5 to 60 °C |
Specifications show the typical range for this product. Confirm the exact model with us before ordering.
