FESTO

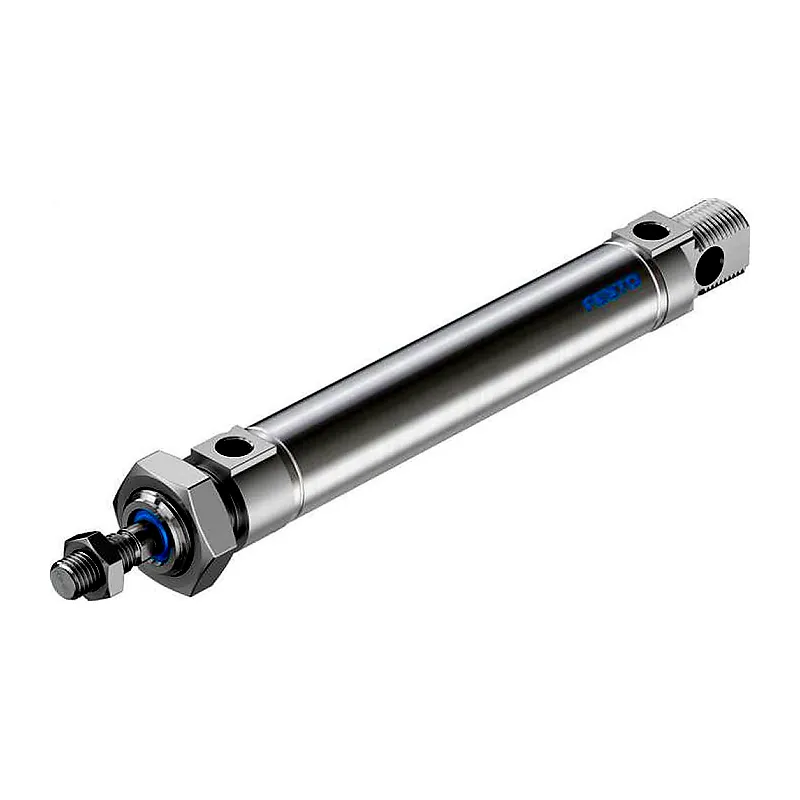

Festo DSNU round cylinder — DSNU-25-100-PPV-A
ISO 6432 round cylinder with stainless barrel and adjustable cushioning. Festo part no. 19248. 25 = bore, 100 = stroke, PPV = adjustable cushioning, A = for proximity sensing.
Specifications
| Part number | DSNU-25-100-PPV-A |
|---|---|
| Series | DSNU (ISO 6432) |
| Festo part no. | 19248 |
| Bore range | 8–63 mm |
| Pressure | 0.1–1.0 MPa |
| Port | G1/8 |
| Rod thread | M10×1.25 |
| Force @ 6 bar | 294.5 N extend / 247.4 N retract |
Specifications show the typical range for this product. Confirm the exact model with us before ordering.
