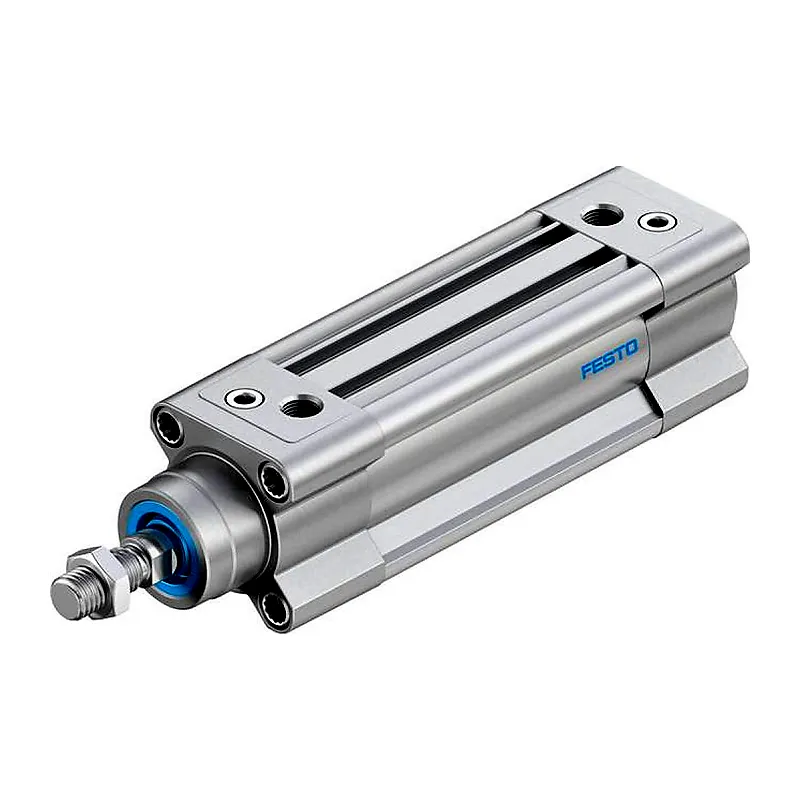

Festo DSBC ISO 15552 cylinder — DSBC-32-50-PPVA-N3
Profile-barrel ISO cylinder with adjustable air cushioning at both ends and sensor slots. Festo part no. 1376424. Code: 32 = bore, 50 = stroke, PPVA = adjustable cushioning, N3 = standard seals.
Specifications
| Part number | DSBC-32-50-PPVA-N3 |
|---|---|
| Series | DSBC (ISO 15552) |
| Festo part no. | 1376424 |
| Bore | 32 mm |
| Stroke | 50 mm |
| Pressure | 0.06–1.2 MPa |
| Port | G1/8 |
| Rod thread | M10×1.25 |
| Force @ 6 bar | 483 N extend / 415 N retract |
Specifications show the typical range for this product. Confirm the exact model with us before ordering.
